mlr3torch

Deep Learning in R with mlr3 and torch

Sebastian Fischer, Martin Binder, Prof. Dr. Bernd Bischl, Lukas Burk and others

2024-07-10


Introduction

  • mlr3torch is a high level deep learning framework in R, built mainly on top of:

    • mlr3 - A machine learning framework in R
    • mlr3pipelines - A dataflow programming toolkit
    • torch - A PyTorch implementation written in native R

  • It allows to easily build, train and evaluate deep learning models

  • GitHub: https://github.com/mlr-org/mlr3torch

Deep Learning in R

  • tensorflow, keras & rtorch - use python libraries through reticulate
  • torch - native R library
  • luz - higher level deep learning library built on top of torch
  • brulee - high level modeling functions for torch

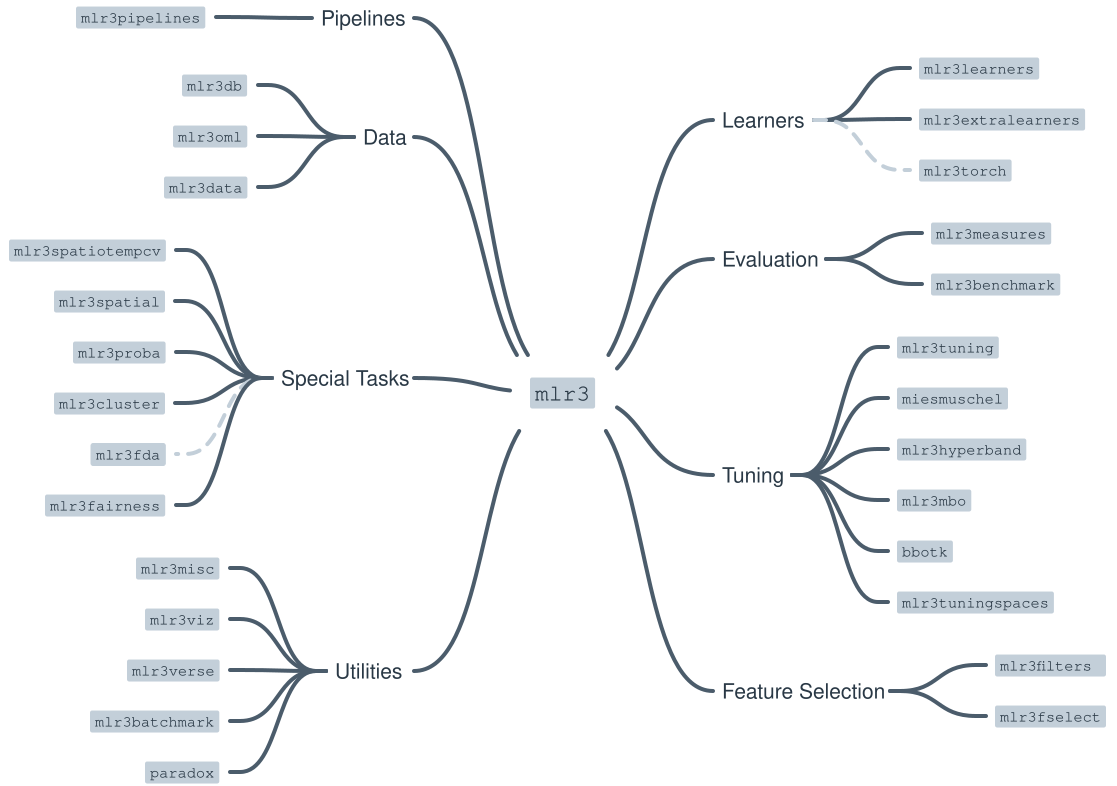

The mlr3 Ecosystem



mlr3’s “Hello World”

  • tsk() creates an example Task, where the goal is to predict the miles-per-galleon of cars
  • lrn() defines a simple regression tree Learner from the {rpart} package
  • rsmp() sets a Resampling strategy
  • resample() runs the resample experiment
  • msr() initializes an mlr3 performance Measure
tsk_mtcars = tsk("mtcars")
lrn_tree = lrn("regr.rpart")
rsmp_cv = rsmp("cv", folds = 3)

rr = resample(
  task       = tsk_mtcars,
  learner    = lrn_tree,
  resampling = rsmp_cv
)

rr$aggregate(msr("regr.mse"))
regr.mse
      19

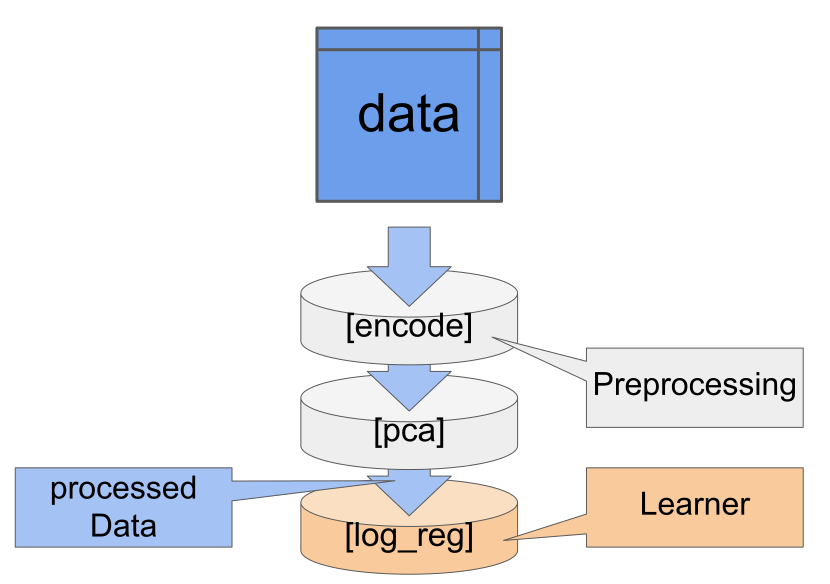

Dataflow Programming with mlr3pipelines

Sequential Preprocessing
  • mlr3pipelines1 allows to assemble new Learners by connecting PipeOps in a Graph, e.g. for preprocessing
  • PipeOps are created via po(), and combined using the chain operator %>>%
library(mlr3pipelines)
library(mlr3learners)

graph = po("encode", method = "one-hot") %>>%
  po("pca") %>>%
  lrn("classif.log_reg")

learner = as_learner(graph)
learner

torch’s “Hello World”

  • Support for GPU accelerated tensor operations
  • An autograd system
  • Provides many tensor operations and optimizers
  • Extension for images via torchvision
  • Developed by Daniel Falbel (Posit)
  • GitHub: https://github.com/mlverse/torch
library(torch)
x = torch_tensor(1, requires_grad = TRUE)
w = torch_tensor(2, requires_grad = TRUE)
b = torch_tensor(3, requires_grad = TRUE)
y = w * x + b
y$backward()
x$grad
torch_tensor
 2
[ CPUFloatType{1} ]
w$grad
torch_tensor
 1
[ CPUFloatType{1} ]
b$grad
torch_tensor
 1
[ CPUFloatType{1} ]

mlr3torch in a Nutshell

  • Task Types:
    • Classification
    • Regression
  • Learners:
    • Off-the-shelf architectures as predefined Learners
    • Build architectures as mlr3pipelines::Graphs
    • Customization of training via a callback mechanism
  • Data Types:
    • Tabular data
    • Generic torch_tensors
    • Multi-modal data

Predefined architectures

  • First, we construct and resample a multi layer perceptron with one hidden layer of size 10 and ReLU activation
  • Then, we define a simple benchmark experiment that compares the neural network with the decision tree from earlier
  • For this task, the neural network seems to be the wrong choice!
library(mlr3torch)
lrn_mlp = lrn("regr.mlp",
  activation     = torch::nn_relu,
  neurons        = 10,
  batch_size     = 32,
  epochs         = 100,
  loss           = t_loss("mse"),
  optimizer      = t_opt("adam", lr = 0.5),
  callbacks      = t_clbk("history")
)

design = benchmark_grid(
  tsk_mtcars, list(lrn_mlp, lrn_tree), rsmp_cv
)
bmr = benchmark(design)
bmr$aggregate(msr("regr.mse"))
   nr task_id learner_id resampling_id iters regr.mse
1:  1  mtcars   regr.mlp            cv     3       86
2:  2  mtcars regr.rpart            cv     3       21
Hidden columns: resample_result

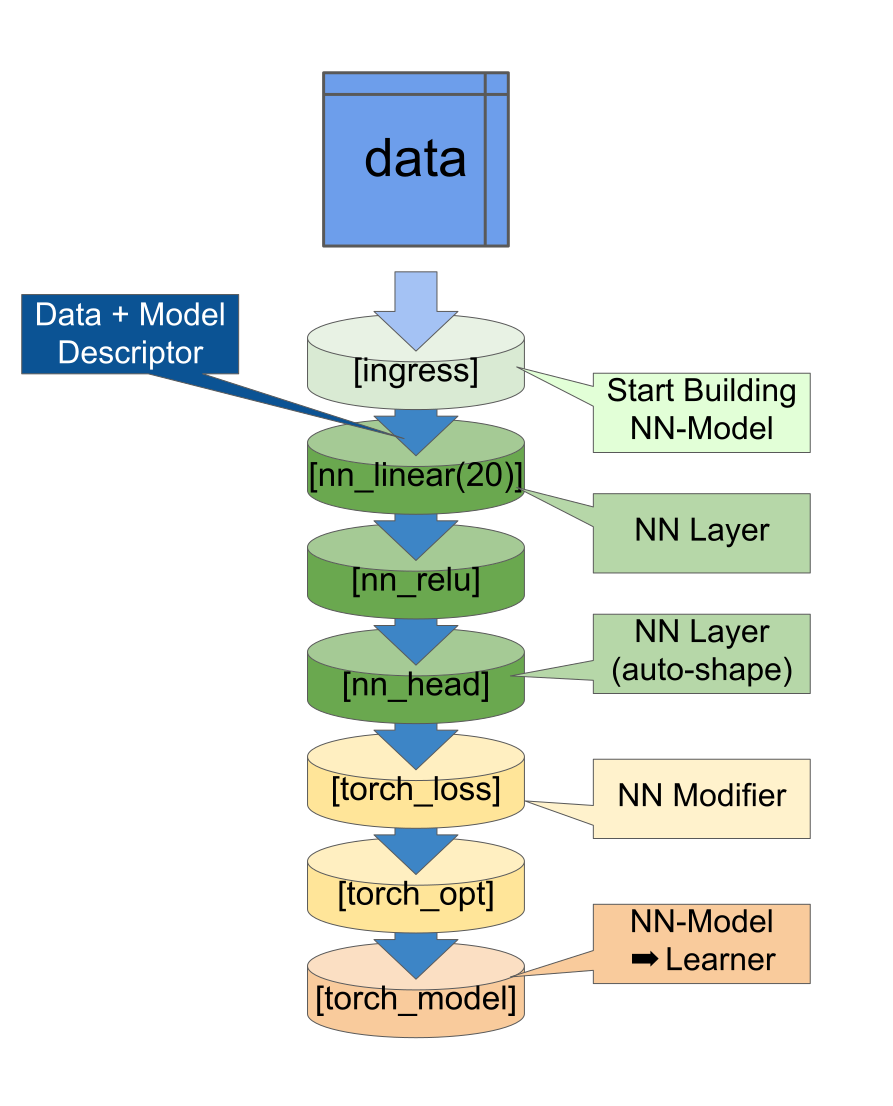

Neural Networks as mlr3pipelines::Graphs




  • We can build the same architecture as before by connecting PipeOps in a Graph
  • This Graph is fully interoperable with other PipeOps
mlp_graph = po("torch_ingress_ltnsr") %>>%
  po("nn_linear", out_features = 20) %>>%
  po("nn_relu") %>>%
  po("nn_head") %>>%
  po("torch_loss", t_loss("cross_entropy")) %>>%
  po("torch_optimizer", t_opt("adam", lr = 0.1)) %>>%
  po("torch_model_classif", batch_size = 16, epochs = 5)

lrn_mlp_graph = as_learner(mlp_graph)

Non-tabular data as lazy_tensors

  • The images of the MNIST task are represented as lazy_tensors, which wrap a torch::dataset
  • We have to reshape the MNIST images to work with our MLP that expects 2d inputs
  • The preprocessing of lazy_tensors happens lazily by internally building up a preprocessing Graph
  • We can combine the flattening step with our previous graph into a new GraphLearner
tsk_mnist = tsk("mnist")
tsk_mnist$head(3)
   label           image
1:     5 <tnsr[1x28x28]>
2:     0 <tnsr[1x28x28]>
3:     4 <tnsr[1x28x28]>
flattener = po("trafo_reshape", shape = c(-1, 28 * 28))
flattener$train(list(tsk_mnist))[[1L]]$head(3)
   label       image
1:     5 <tnsr[784]>
2:     0 <tnsr[784]>
3:     4 <tnsr[784]>
lrn_flat_mlp = as_learner(flattener %>>% mlp_graph)
lrn_flat_mlp$train(tsk_mnist)


Hyperparameter Tuning

  • The resulting GraphLearner has a parameter set representing all configuration options, which can be tuned!
  • Optimize the latent dimension of the network and the learning rate of the optimizer using Bayesian Optimization from mlr3mbo.
library(mlr3tuning)
library(mlr3mbo)

as.data.table(lrn_flat_mlp$param_set)[c(5, 12), 1:4]
                       id    class lower upper
1: nn_linear.out_features ParamInt     1   Inf
2:     torch_optimizer.lr ParamDbl     0   Inf
lrn_flat_mlp$param_set$set_values(
  nn_linear.out_features = to_tune(10, 100),
  torch_optimizer.lr = to_tune(1e-05, 1e-03, logscale = TRUE)
)
tune(
  learner = lrn_flat_mlp,
  task = tsk_mnist,
  tuner = tnr("mbo"),
  term_evals = 100L,
  resampling = rsmp("holdout")
)

Multi Modal Data

  • mlr3torch naturally supports multi-modal data as lazy_tensors can be stored in data.frames
  • Consider a classification task with some medical data about patients, as well as images
  • mlr3torch allows to easily build neural networks with multiple inputs, e.g. each operating on a different subset of features
medical_task
<TaskClassif:medical> (100 x 4): Medical Diagnosis
* Target: status
* Properties: twoclass
* Features (3):
  - dbl (2): age, lesion_size
  - lt (1): image
medical_task$head(3)
      status age           image lesion_size
1:    benign  NA <tnsr[3x64x64]>        0.99
2:    benign  21 <tnsr[3x64x64]>        0.56
3: malignant  56 <tnsr[3x64x64]>        0.71

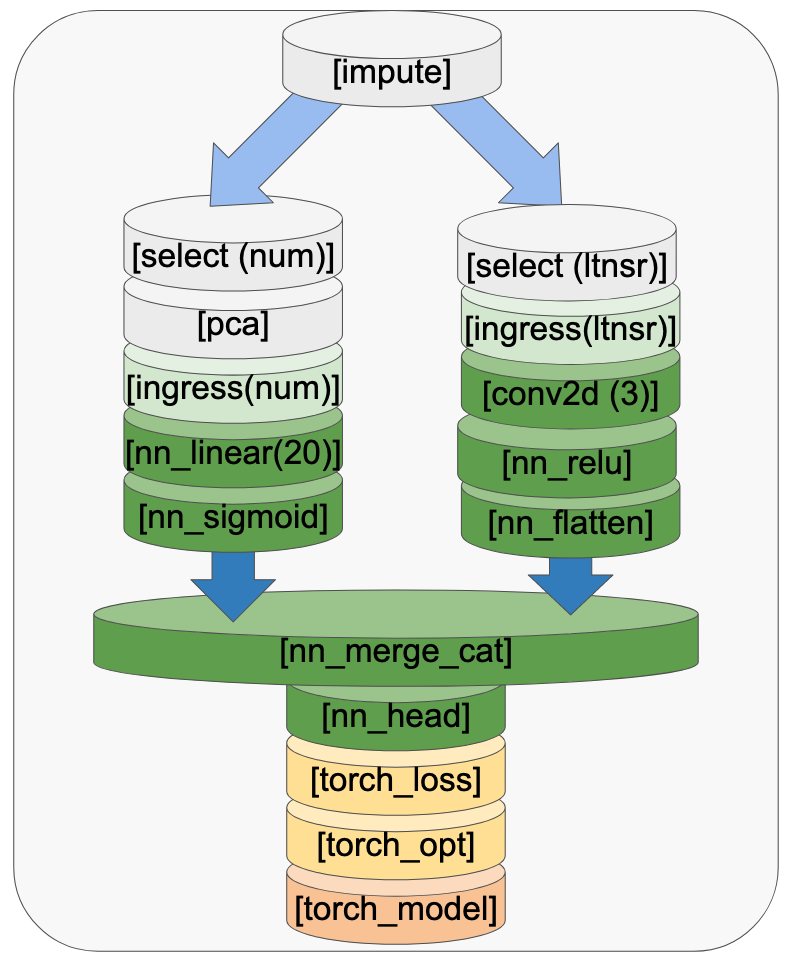

Multi Modal Data



branch_num = po("select_1", selector = selector_type("numeric")) %>>%
  po("pca") %>>%
  po("torch_ingress_num") %>>%
  po("nn_linear", out_features = 20) %>>%
  po("nn_sigmoid")

branch_img = po("select_2", selector = selector_type("lazy_tensor")) %>>%
  po("torch_ingress_ltnsr") %>>%
  po("nn_conv2d", out_channels = 3) %>>%
  po("nn_relu") %>>%
  po("nn_flatten")

graph = po("imputeoor") %>>% list(branch_num, branch_img) %>>%
  po("nn_merge_cat") %>>%
  po("nn_head") %>>%
  po("torch_loss", t_loss("cross_entropy")) %>>%
  po("torch_optimizer", t_opt("adam", lr = 1e-4)) %>>%
  po("torch_model_classif", batch_size = 16, epochs = 50)

Learn More

UseR 2024
